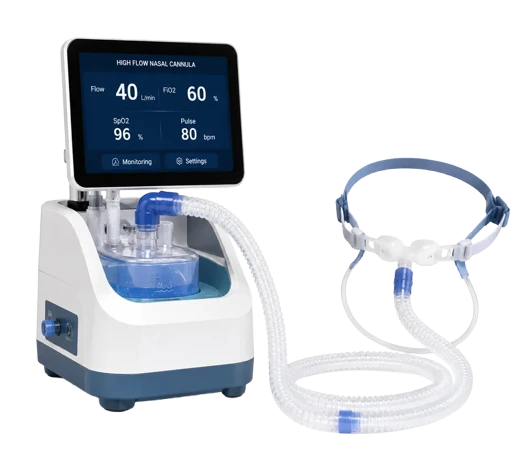

High-Flow Nasal Cannula (HFNC) Respiratory System
Buyer ratings
The MedPrax high-flow nasal cannula (HFNC) system delivers warmed, humidified, and precisely titrated oxygen-enriched air at high flow rates to patients suffering from acute hypoxemic respiratory failure, reducing the work of breathing and dead space ventilation.
Saved items are stored on this browser only.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | MedPrax |
| Electrical supply | 220V / 240V · 50Hz / 60HzOther voltage and frequency configurations are available on request. |
| Classification | HFNCHigh Flow Nasal CannulaRespiratory HumidifierOxygen TherapyCritical Care |
| Clinical Applications | |
| Supplies to | GlobalIndiaMiddle EastAfricaSoutheast AsiaEuropeNorth America |
| Detailed Specs | • Flow Range: Pediatric mode: 2–25 L/min; Adult mode: 10–70 L/min (stepless 1 L/min adjustment) • Oxygen Concentration (FiO2): 21% to 100% with built-in electronic ultra-precise O2/Air blender • Temperature Control: Adjustable from 31°C to 37°C in 1°C increments with dual-heated breathing circuits • Humidification: 100% relative humidity delivering >33 mg/L water vapor at set clinical temperature • Display: 4.3-inch color LCD showing real-time Flow, FiO2, Dew Point Temperature, and airway pressure • Safety Alarms: Disconnection alarm, low oxygen supply pressure alarm, temperature overshoot cutoff, high airway pressure safety release |
Product Description
Key Features and Capabilities
Features an electronic air-oxygen blender that eliminates mechanical adjustment errors, an intelligent heated humidification chamber, and dual-sensor heated wire circuits that prevent condensate build-up and rain-out in the patient line.
Clinical Applications
Employed in intensive care units, COVID-19 and infectious isolation wards, step-down pulmonary units, and post-extubation weaning protocols to maintain anatomical dead space washout and positive end-expiratory pressure (PEEP).
Technical Specifications and Highlights
Delivers flow rates up to 70 L/min and oxygen concentrations from 21% to 100% without external compressed air lines thanks to a whisper-quiet internal turbine blower system.
Recommended Settings and Environments
Essential for hospital pulmonary departments, critical care units, post-surgical recovery suites, and emergency rooms managing respiratory compromise.
Summary
A premier non-invasive high-flow respiratory humidification unit delivering optimized oxygen therapy and superior patient tolerance. Available on MedPrax Market.
