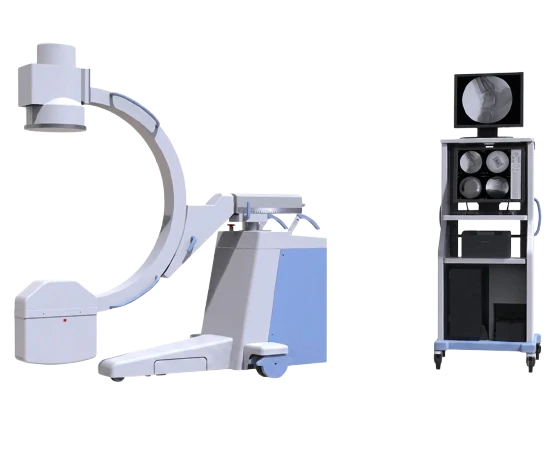

High-Frequency Mobile C-Arm Fluoroscopy Machine (3.5kW / 5kW)
Buyer ratings
The MedPrax high-frequency mobile C-Arm fluoroscopy machine provides real-time high-resolution X-ray visualization for surgical guidance during complex orthopedic, spinal, and interventional procedures.
Saved items are stored on this browser only.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | MedPrax |
| Electrical supply | 220V / 240V · 50Hz / 60HzOther voltage and frequency configurations are available on request. |
| Classification | C-Arm MachineMobile C-ArmFluoroscopySurgical ImagingOrthopedic X-RayImage Intensifier |
| Clinical Applications | |
| Supplies to | GlobalIndiaMiddle EastAfricaSoutheast AsiaEuropeNorth America |
| Detailed Specs | • High-Voltage Generator: 3.5 kW / 5.0 kW high-frequency (40 kHz) inverter generator with 110 kV / 120 kV tube potential • X-Ray Tube: Stationary / Rotating anode X-ray tube with dual micro-focus (0.6 mm / 1.5 mm) • Image Intensifier / Detector: 9-inch high-gain tri-mode image intensifier (9"/6"/4.5") or optional 21×21 cm dynamic Flat Panel Detector (FPD) • Imaging Chain: High-resolution 1k × 1k 14-bit CCD digital camera delivering 30 fps continuous and pulsed fluoroscopy • Display Workstation: Twin 19-inch / 24-inch medical-grade LCD monitors mounted on a mobile viewing console cart • C-Arm Orbital Movement: Orbital rotation 130° (-35° to +95°); Horizontal travel 200 mm; Vertical motorized lift 400 mm • Storage & DICOM: 100,000 image storage capacity, real-time recursive noise reduction, edge enhancement, and full DICOM 3.0 network support |
Product Description
Key Features and Capabilities
Engineered with a balanced counter-weight C-arm gantry allowing multi-axis orbital, rotational, and horizontal positioning, a low-dose pulsed fluoroscopy mode reducing patient and staff radiation exposure, and a dedicated dual-monitor viewing trolley.
Imaging Performance
Delivers crystal-clear anatomical visualization with 1k×1k digital resolution, multi-stage recursive filtering, dynamic contrast enhancement, and digital road-mapping for guide-wire placements.
Clinical Applications
Extensively utilized for orthopedic fracture fixation (ORIF), intramedullary nailing, pedicle screw fixation in spine surgery, vascular stenting, pain management nerve blocks, and urological stent placement.
Safety and Compliance
Incorporates a laser aiming localizer, automated dose-area product (DAP) calculation, dose-reduction copper filters, and pulsed fluoroscopy protocols compliant with international radiation safety standards.
Recommended Settings and Environments
Hospital operating rooms, trauma surgical centers, orthopedic specialty clinics, and pain management suites.
Summary
A high-performance mobile C-Arm fluoroscopy system providing sharp intraoperative imaging, smooth positioning, and comprehensive dose protection. Available through MedPrax Market.
