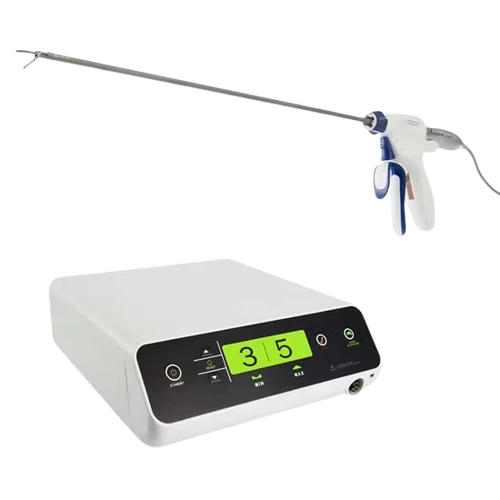

Ultrasonic Harmonic Surgical Scalpel & Generator System
Buyer ratings
The MedPrax ultrasonic harmonic surgical scalpel system converts high-frequency electrical energy into mechanical acoustic vibrations (55.5 kHz) to simultaneously cut and coagulate vascular tissue without passing electrical current through the patient body.
Saved items are stored on this browser only.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | MedPrax |
| Electrical supply | 100V / 240V · 50Hz / 60HzOther voltage and frequency configurations are available on request. |
| Classification | Harmonic ScalpelUltrasonic ScalpelSurgical GeneratorEnergy DeviceCutting and CoagulationLaparoscopic Handpiece |
| Clinical Applications | |
| Supplies to | GlobalIndiaMiddle EastAfricaSoutheast AsiaEuropeNorth America |
| Detailed Specs | • Operating Frequency: 55.5 kHz ± 0.5 kHz high-efficiency ultrasonic acoustic transducer • Cutting & Coagulation: Simultaneous tissue dissection and vessel sealing up to 5mm diameter with minimal smoke and lateral thermal damage (<1mm) • Power Levels: 5 adjustable power amplitude levels (MIN mode for deep coagulation, MAX mode for rapid transection) • Handpieces & Shears: Compatible with 14cm (open), 23cm, 36cm, and 45cm (bariatric/laparoscopic) curved and straight shears • Generator Interface: 7-inch color capacitive touchscreen with automatic handpiece and instrument tip recognition • Safety & Diagnostics: Automated impedance feedback system, self-diagnostic boot test, waterproof dual foot switch |
Product Description
Design and Construction
Eliminates smoke and charring associated with standard electrosurgery, seals blood vessels up to 5mm diameter with exceptional burst pressure resistance, and features lightweight ergonomic handpieces with curved blades for precise blunt dissection.
Surgical Applications
Widely used in open and laparoscopic thyroidectomy, head and neck surgery, hepato-pancreato-biliary (HPB) surgery, bariatric gastrectomy, colorectal resections, and radical gynecologic oncology.
Recommended Settings
Advanced surgical suites, minimally invasive surgery centers, endocrine surgery units, and oncology hospitals.
Summary
A state-of-the-art ultrasonic harmonic dissection platform delivering clean, smoke-free tissue transection and rapid vessel sealing. Available via MedPrax Market.
