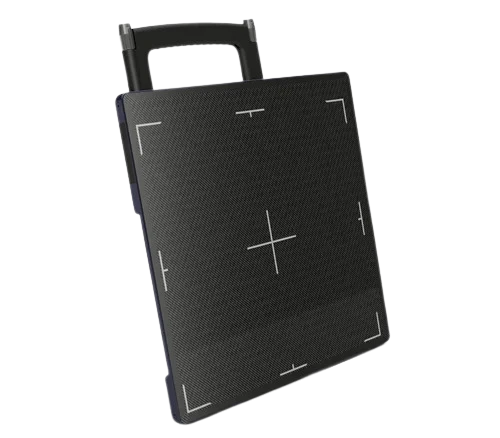

Digital Radiography (DR) Wireless Flat Panel Detector (14x17 / 17x17)
Buyer ratings
The MedPrax wireless digital radiography (DR) flat panel detector is a high-sensitivity Cesium Iodide digital cassette designed to instantly convert existing analog film or CR X-ray systems into high-speed direct digital radiography units.
Saved items are stored on this browser only.
Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | MedPrax |
| Electrical supply | 100V / 240V · 50Hz / 60HzOther voltage and frequency configurations are available on request. |
| Classification | Flat Panel DetectorDR PanelDigital X-RayWireless DR DetectorCesium IodideX-Ray Retrofit |
| Clinical Applications | |
| Supplies to | GlobalIndiaMiddle EastAfricaSoutheast AsiaEuropeNorth America |
| Detailed Specs | • Scintillator & Sensor: Direct-deposit Cesium Iodide (CsI:Tl) with amorphous Silicon (a-Si) photodiode array • Active Area: Standard ISO 4090 cassette dimensions: 14" × 17" (35 × 43 cm) or 17" × 17" (43 × 43 cm) • Pixel Pitch & Matrix: 100 µm / 139 µm pixel pitch; matrix size up to 3072 × 3072 pixels (16-bit grayscale ADC) • Exposure Trigger: Automatic Exposure Detection (AED) with loss-free hardware triggering requiring zero electrical cable sync with the X-ray generator • Image Acquisition Speed: Wireless preview image in <2 seconds; full diagnostic image in <4 seconds • Durability & Casing: Lightweight carbon fiber unibody with 150 kg point-load tolerance and IPX6 water resistance • Connectivity: Dual-band 2.4/5GHz Wi-Fi and magnetic tether cable; includes professional radiology acquisition workstation software |
Product Description
Key Features and Capabilities
Equipped with patented loss-free Auto Exposure Detection (AED) that detects X-ray beams automatically without needing generator sync cables, a high-strength carbon fiber casing, and hot-swappable dual lithium batteries.
Imaging Performance
Delivers superior Detective Quantum Efficiency (DQE) and Modulation Transfer Function (MTF) at significantly lower radiation doses compared to conventional film or computed radiography (CR) plates.
Clinical Applications
Used for routine chest X-rays, orthopedic musculoskeletal radiography, bedside ICU examinations, emergency room trauma series, and mobile radiography.
Technical Specifications and Highlights
Produces high-resolution 16-bit DICOM X-ray images within 3 seconds of exposure, includes an advanced image processing engine for bone and soft-tissue optimization, and fits standard Bucky trays.
Recommended Settings and Environments
Hospital radiology departments, diagnostic centers, orthopedic clinics, and mobile diagnostic imaging vans.
Summary
A high-efficiency wireless DR flat panel detector offering seamless digital conversion, exceptional image clarity, and rapid workflow acceleration. Available on MedPrax Market.
